This is the Revision A verion of the IRBeacon8 RoboBrick. The status of this project is work in progress.

IRBeacon8 Robobrick (Revision A)

Table of Contents

This document is also available as a PDF document.

1. Introduction

The IRBeacon8 RoboBrick is used to provide an IR beacon that RoboBricks can home in on. It is designed for both stand alone operation and to work in a RoboBrick setting.

2. Programming

{To be done}

3. Hardware

The hardware consists of a circuit schematic and a printed circuit board.

3.1 Circuit Schematic

The Irbeacon8 RoboBrick schematic is shown below:

Irbeacon8 RoboBrick Schematic

The parts list kept in a separate file -- irbeacon8.ptl.

3.2 Printed Circuit Board

The available printed circuit boards are listed below:

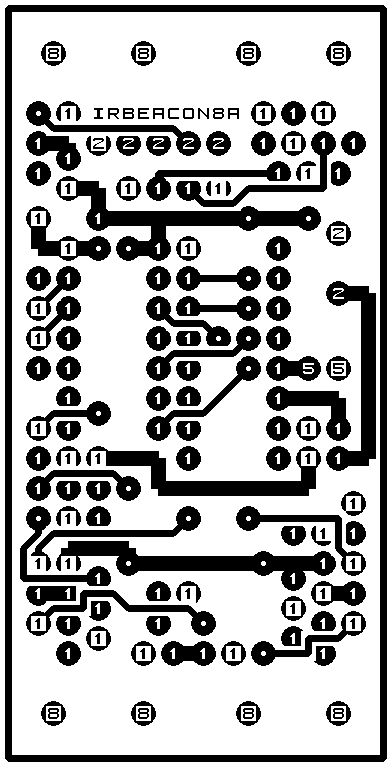

The solder side layer.

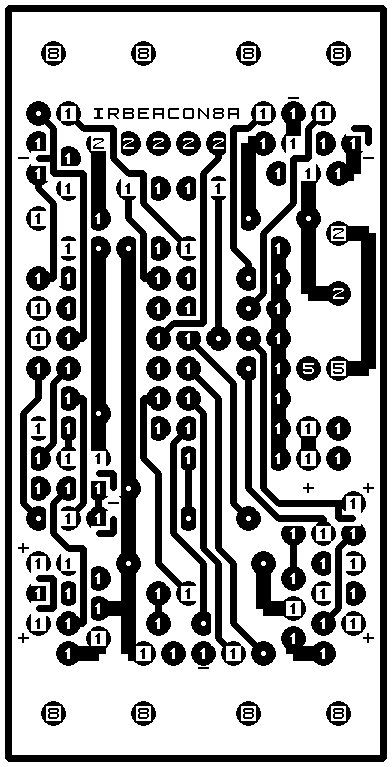

The component side layer.

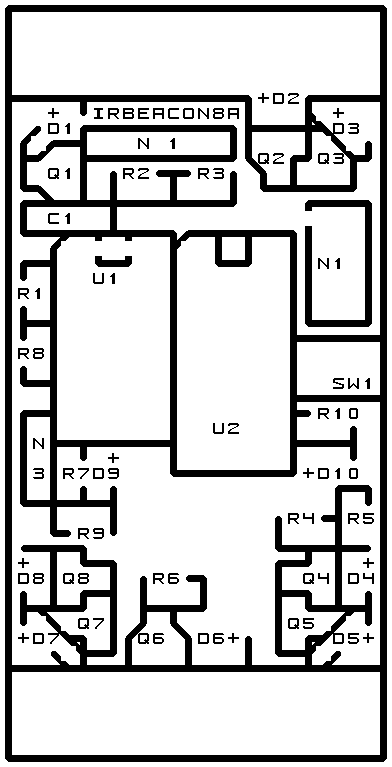

The artwork layer.
irbeacon8.gbl
The RS-274X "Gerber" back (solder side) layer.
irbeacon8.gtl
The RS-274X "Gerber" top (component side) layer.
irbeacon8.gal
The RS-274X "Gerber" artwork layer.
irbeacon8.drl
The "Excellon" NC drill file.
irbeacon8.tol
The "Excellon" NC drill rack file.

4. Software

The IRBeacon8 software is available as one of:

irbeacon8.ucl
The µCL source file.
irbeacon8.asm
The resulting human readable PIC assembly file.
irbeacon8.lst
The resulting human readable PIC listing file.
irbeacon8.hex
The resulting Intel® Hex file that can be fed into a PIC12C5xx programmer.

5. Issues

The following fabrication issues came up:


Copyright (c) 2000-2002 by Wayne C. Gramlich. All rights reserved.
